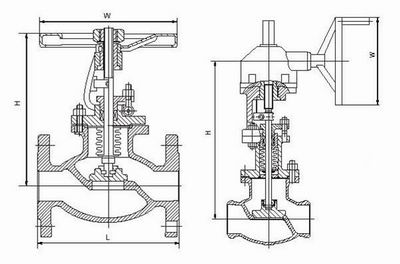

A flanged and BW bellow sealed, in-line stop valve for use on steam, gas, liquid condensate and water systems. Stop valve with bellow seal acc. to ANSI fully complies with standard BS 5160.
Design and manufacture: BS 5160
Face to face: ANSI B16.10
Flanged end: ANSI B16.5
BW ends: ANSI B16.25
Inspection & test: API 598
|
DN |
L mm |
H mm |
W mm |
Weight kg |
|
150lbs |
|
1/2¡± |
108 |
241 |
120 |
4 |
|
3/4¡± |
117 |
241 |
140 |
5 |
|
1¡± |
127 |
241 |
140 |
6 |
|
1 1/4¡± |
140 |
280 |
180 |
10 |
|
1 1/2¡± |
165 |
286 |
200 |
13 |
|
2¡± |
203 |
368 |
220 |
18 |
|
2 1/2¡± |
216 |
387 |
260 |
30 |
|
3¡± |
241 |
400 |
280 |
35 |
|
4¡± |
292 |
457 |
300 |
55 |
|
5¡± |
356 |
520 |
320 |
75 |
|
6¡± |
406 |
609 |
340 |
104 |
|
8¡± |
495 |
698 |
400 |
200 |
|
10¡± |
622 |
762 |
450 |
300 |
|
12¡± |
698 |
876 |
450 |
390 |
|
14¡± |
787 |
990 |
450 |
610 |
