Body |
Carbon Steel A216 WCB, A352 LCB, Alloy Steel WC6, WC9, C5, Stainless Steel CF8(M), CF3(M) |
|
Disc |
Carbon Steel A216 WCB, A352 LCB, Alloy Steel WC6, WC9, C5, Stainless Steel CF8(M), CF3(M) |
|
Seat ring |
PTFE, Stainless Steel, Graphite Spiral Wound |
|
Sealing face overlay |
PTFE, 13Cr, 18Cr-8Ni, Co-Cr-a |
|

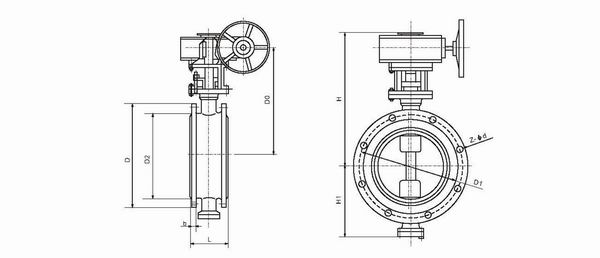

Size |
L mm |
H mm |
Weight kg |
|
150 lbs |
|
1 1/2¡± |
106 |
248 |
11 |
|
2¡± |
108 |
254 |
12 |
|
2 1/2¡± |
112 |
278 |
16 |
|
3¡± |
114 |
312 |
20 |
|
4¡± |
127 |
330 |
23 |
|
5¡± |
140 |
368 |
29 |
|
6¡± |
140 |
404 |
40.5 |
|
8¡± |
152 |
496 |
81 |
|
10¡± |
165 |
558 |
108 |
|
12¡± |
178 |
632 |
135 |
|
14¡± |
190 |
672 |
188 |
|
16¡± |
216 |
714 |
255 |
|
18¡± |
222 |
768 |
340 |
|
20¡± |
229 |
828 |
445 |
|
24¡± |
267 |
952 |
578 |
|
|
